Features

• Finish: Black/Black, Black/Gold, Black/White, White/Black, White/Gold, White/White

• Power: 20W
• Input: 48 VDC
• Color Temperature: 2700K, 3000K, 3500K, 4000K
• Delivered Lumens: 730-1170

• CRI: 90
• ELV Dimming: 100-0.1%
• 0-10V Dimming: 100-0.1%
• TRIAC Dimming: 100-0.1%
• Beam: 15°-45°

• Rated Life: 50000 Hours
• Construction: Extruded Aluminum with PC retractable accenting collar

• Easy wiring adjustment with cable-gripper on fixture body

• Retractable accenting collar available in multiple finishes extends up to 3/8" to create two-tone finish
• No splicing required for pendant height adjustment on VENTRIX
• To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
• Driver concealed within the fixture

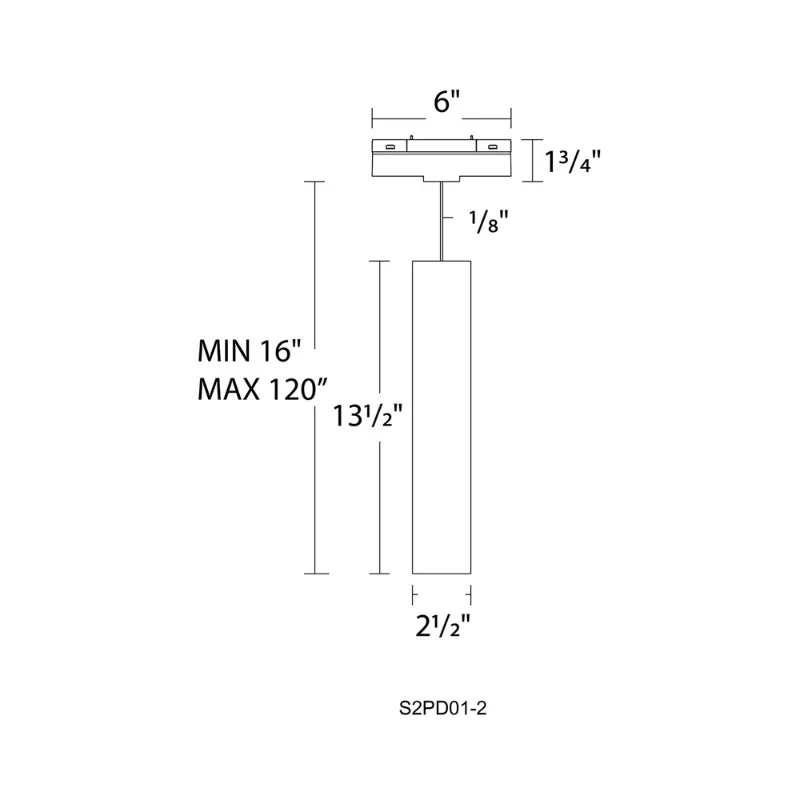

Dimensions

• Width: 6"
• Height: 16"-120"
